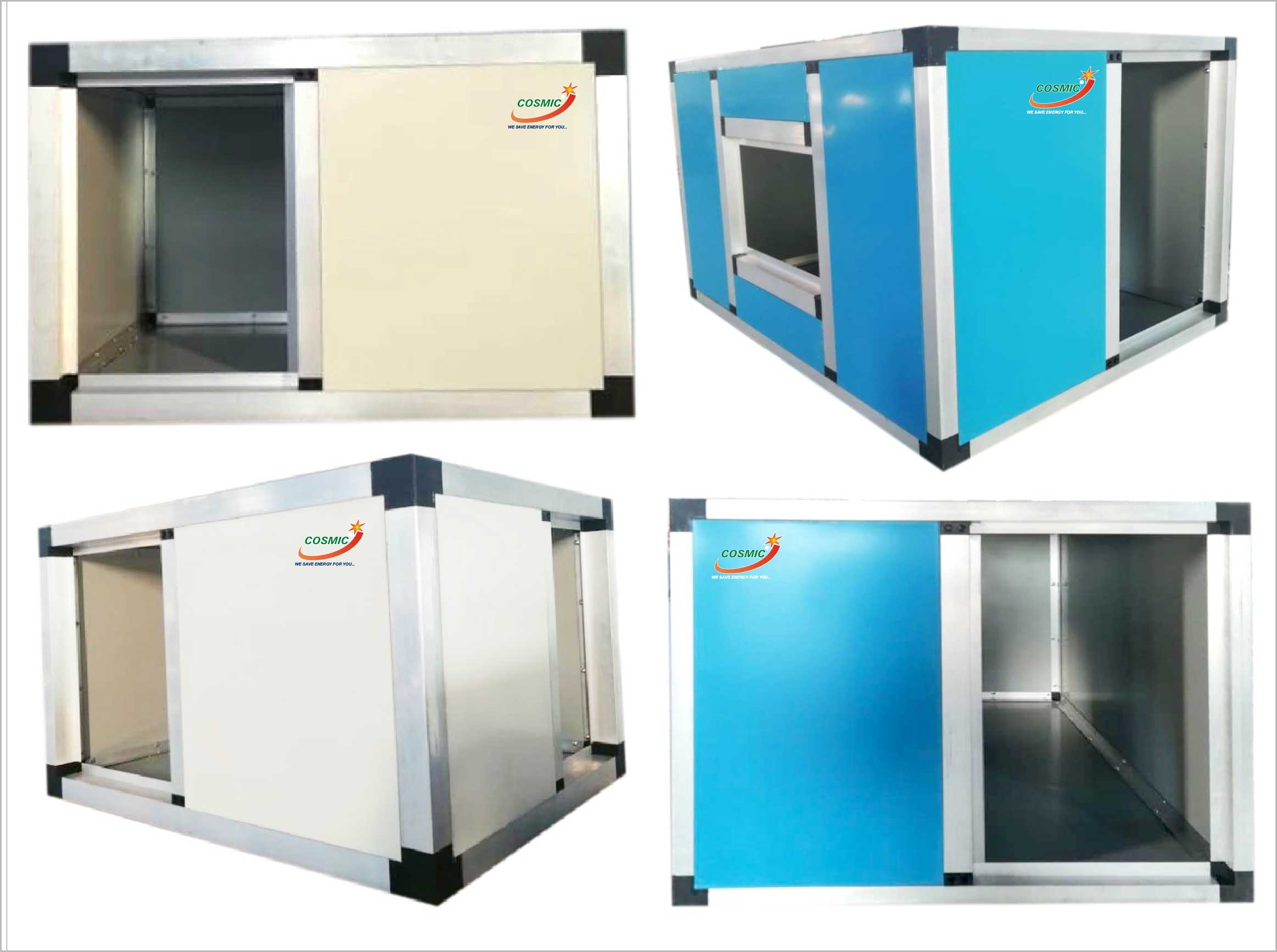

DOUBLE SKIN PLENUM BOXES

The metal cladding panels are thermal resistant, ability to withstand the most extreme temperature difference.

Applications :

DOUBLE SKIN PLENUM BOXES are designed based on Modular Paneling Concept to fulfill the indoor air quality requirements. Mainly designed to reduce the air cutting noise and blower noise in air supply. The airflow noise can be reduced by using multi directional supply air outlets for high volume of air quantity and as well as in high pressure areas.

Cosmic can makes High Quality, Flexibility Double Skin Plenums, which can provide excellent thermal efficiencies and to be air tight. Cosmic double skin plenums are manufactured with flexibility features to meet the indoor air quality, operating efficiency, sound level and panel sector installation requirements for today's extensive commercial and customized markets.

Mounting :

Double Skin Plenums panels are assembled and mounted on AHU with necessary supports and fittings.

Standard Finishes :

Available in Natural Galvanized Steel or Powder Coated to standard Blue Colour, and Non Standard Colour also available upon request.

Implementations :

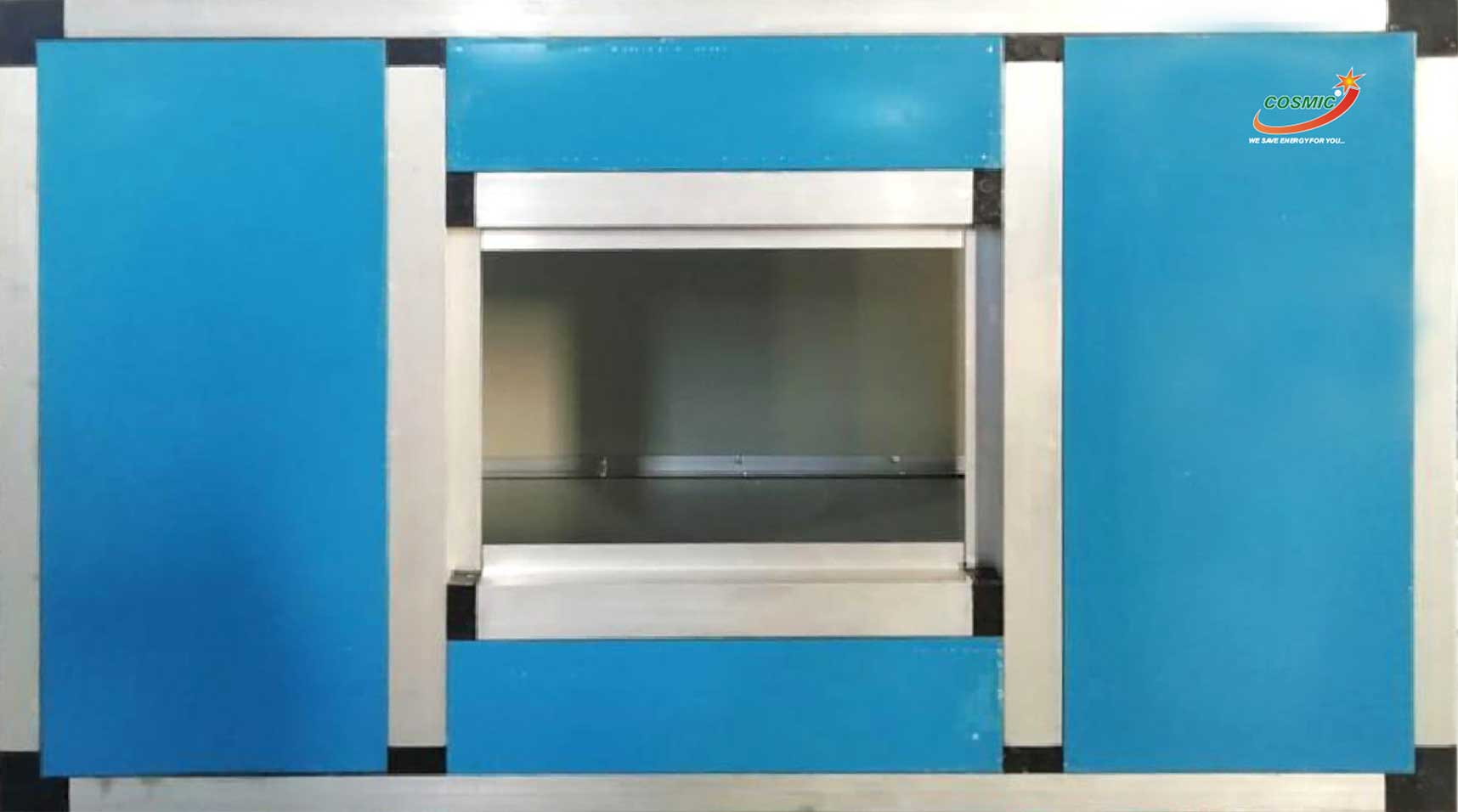

Cosmic Double Skin Plenums are constructed with high quality and rigid extruded aluminium outer frame profiles. Besides, it is with thermal barrier feature which using three leg fiber plastic corner joints. The extruded aluminium outer frame profile design allows three identical pieces to be fitted together to form a composite corner piece. Both of this features form the rigid frame of the double skin plenums.

The Double Skin Plenum wall is made up by Poly Urethane Foam (PUF) Insulations Panel with 0.6 mm high quality pre-coated sheet for external skin wall and 0.6 mm Galvanized Steel (G.I) Sheet as a internal skin wall. Besides there is special thickness 0.8 mm, 1.0 mm and 1.2 mm of skin material as per customer request. The insulation foam thickness can be 25 mm or 50 mm with the density of 40 Kg/M3.

The cabinet construction reduces significantly the sound level from the fan of an AHU.
