ACTIVE FLOOR Grilles

Application

Active floor grilles with air booster fans are used in under floor airconditioning systems. Where under heavy foot or equipment traffic is experienced. Suitable for more air flow rate and high cfm or where the clusters of high density severs created hot spots in datacenters and telecommunication centres.

Mounting

Replacing a tile in heavy duty raised access floors or directly in an opening made in the Floor Fixing.


PARTS AND ACCESSERORIES:
• Extruded Aluminium powder coated grille.
• High quality, Heavy duty powder coated G.I. Housing frame.
• Axial fan with E.C. Motor.
• Temperature sensors.
• Controller with LED Display.
• Fan regulater for speed adjustment.

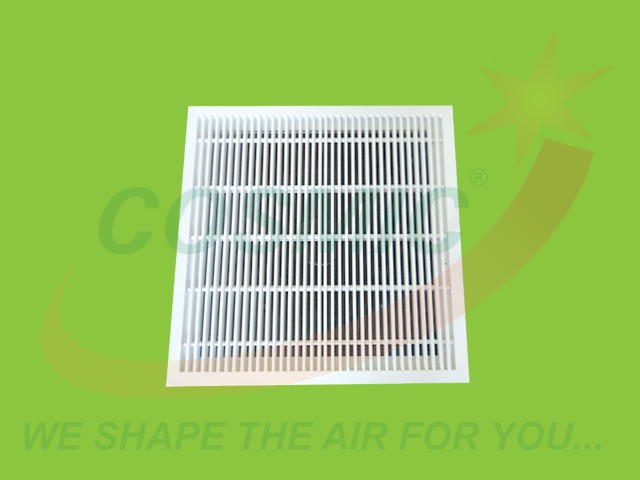

EXTRUDED ALUMINIUM GRILLE
Extruded Aluminium powder coated grille with or without collar dampers available in 0°, 15° and 30° deflection and also in one way or two way models. Collar dampers are available in extruded aluminium powder coated finish or in high quality galvanized steel. Available in any standard or non — standard sizes.

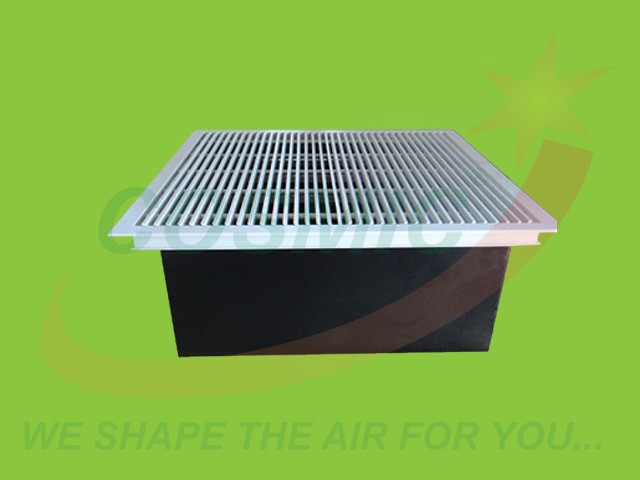

HEAVY DUTY HOUSING FRAME
High quality powder coated rein forced frame assembly to with stand heavy load, at the bottom of the frame safety mesh will be provide and having provision to fix the high cfm deliverable Axial fan.

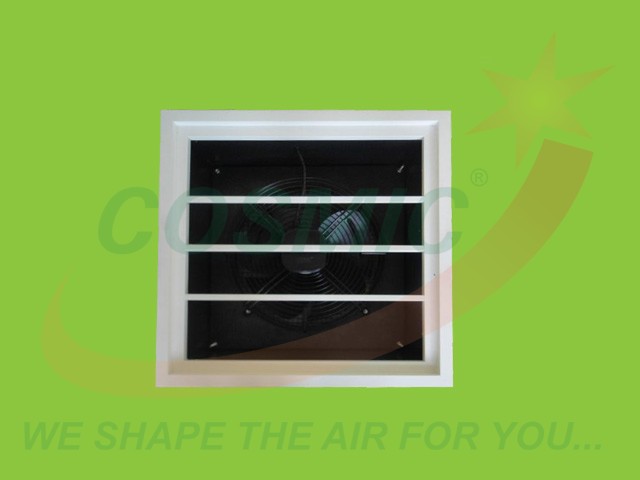

AXIAL FAN WITH E.C. MOTOR
Fans used in this system are high quality fan with E.C. Motor. The external motor of the axial fan unit is directly integrated with axial impeller. Fan with finger guard on both sides for safety. The fan unit is mounted with wall ring and round nozzle to increase the fan static.


TEMPERATURE SENSOR AND CONTROLLER WITH DISPLAY
This system comes with temperature sensors to sense the temperature is hot and if it is more than the set temperature, Controller will switch on the fan will continusly pump the air until the set temperature is achieved.
TEMPERATURE SETTING
From 16°c to 40 °C.
FAN SPEED REGULATOR
CFM minimum 400 to 1000 CFM
SIZES
Available in standard size for tile replacement or for any non — standard sizes also available with powder coating.
