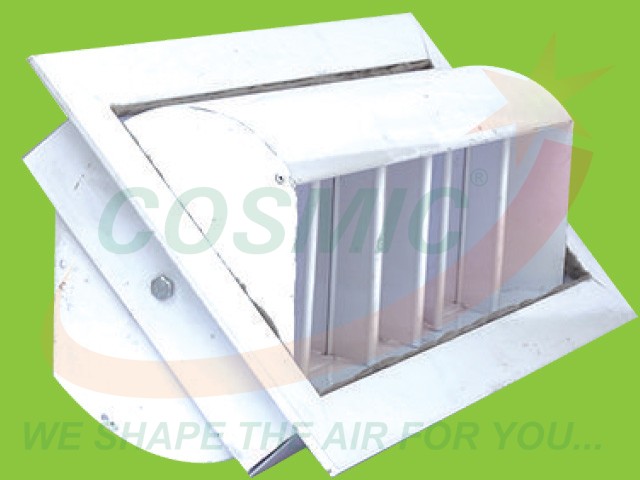

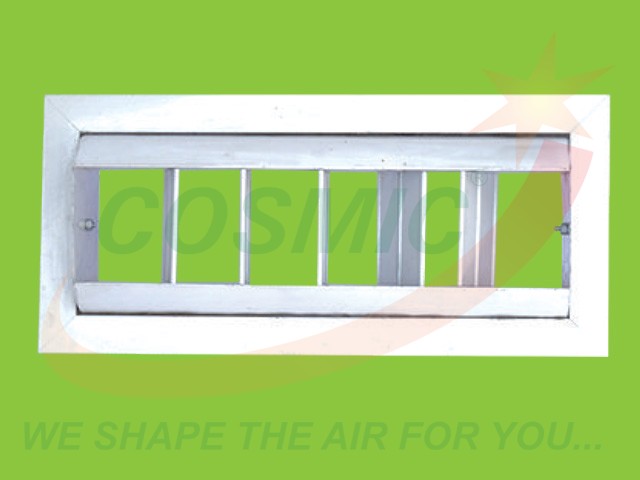

DRUM JET DIFFUSERS

Application

These diffusers are designed to handle large air volumes on comparatively long throws. They are idealy suited for exposed duct or sidewall applications in large open spaces such as warehouses, factories, auditoriums, sports Halls and swimming pools etc.

Mounting

Fixing by means of visible metal screws on flanges in side throw or to be fixed directly with plenum boxes.

Implementation

A frame with flat frontal face, outer casing of fully extruded and connected with aluminium sheet and inner blade assembly. The angle of dischange can be adjusted through 60° available with or without diffuser mounted opposite blade collar damper available in all standard and nonstandard sizes.


STANDARD FINISHES
Available in natural aluminium, anodised, (or) powder coated in standard RAL white colours.
