Slot Diffusers or Linear Diffusers

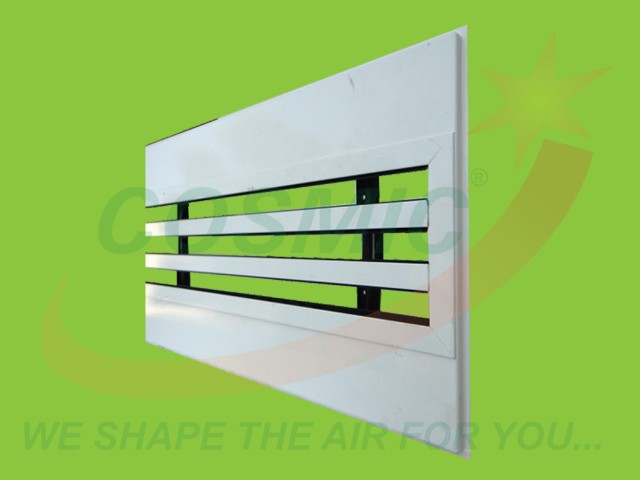

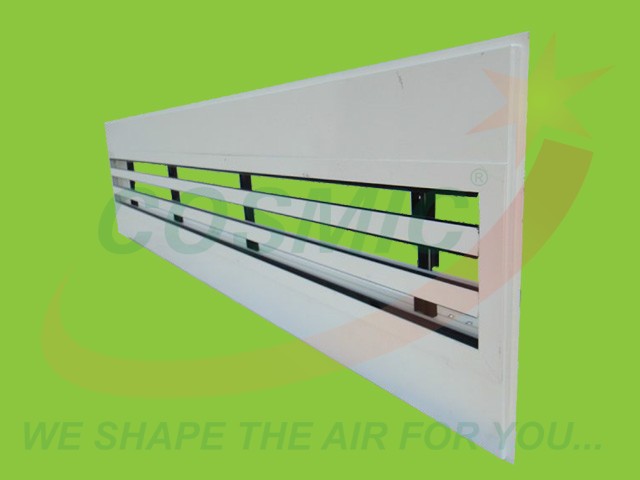

TECHZONE SLOT DIFFUSERS

Application

Air supply or air return in between 2.6 meters to 4.0 meters high is Armstrong Tech Zone ceiling systems to give superior performance and asthetics in Airconditioning,Ventilating and Heating systems.

Mounting

Directly replacing the Armstrong Tech zone ceiling tile.

Features

• Cosmic make Tech zone diffusers are made of high quality extruded aluminium with powder coated to standard RAL colours. Pattern control designed for easy adjustment of horizontal and vertical throws.
• Cosmic make Tech zone linear slot diffusers are available in 2 slot and 3 slot configuration to suit the Tegular ceilings ( 8mm drop towards the floor) or flush armstrong ceilings. The direction of discharge can be adopted on site to the required room conditions.
• Cosmic make Tech zone slotted diffusers are available in two opening sizes 19mm and 25mm with or without hit and miss dampers also with standard or non-standard size plenum boxes.

Sizes

Cosmic make Tech zone diffusers are available in normal grid size: 600mm, 1200mm, 1800mm long and continuous run without breaking the uniformity of the slots and also available in non — standard sizes.

STANDARD FINISHES:

Natural Aluminium, Anodized or power coated in standard RAL white
