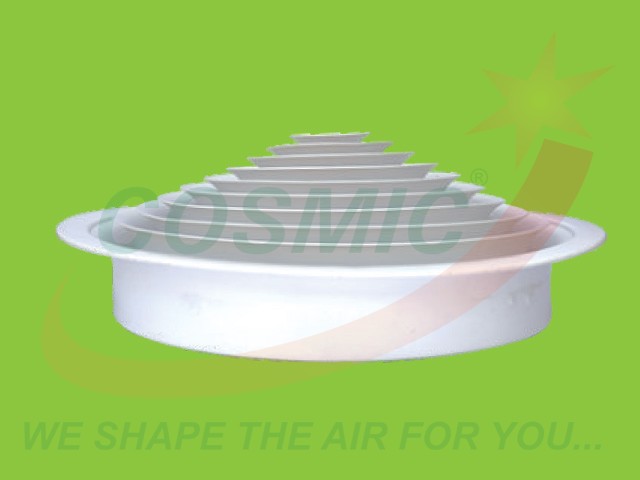

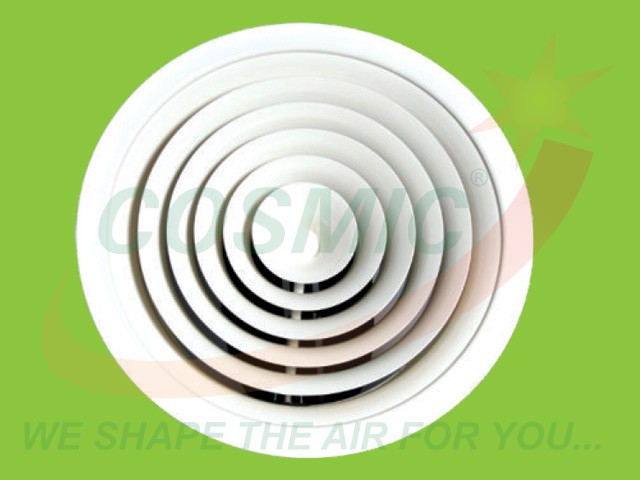

Round Diffusers

Round Diffusers

Application

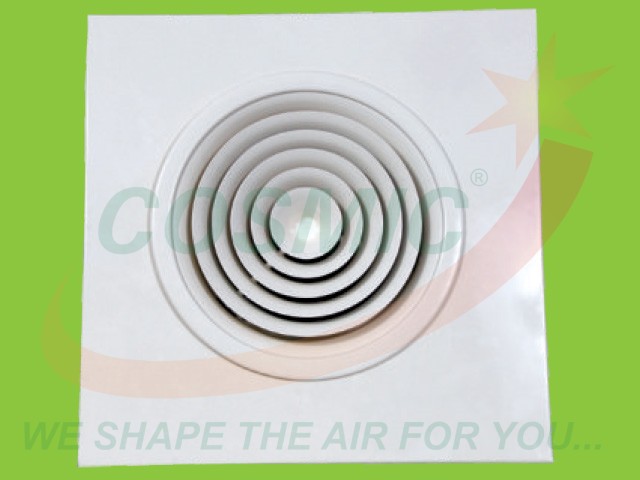

Air supply or air return to different heights from 2.6 mtrs to 4.0 mtrs in Air-conditioning,Ventilating and Heating systems. High air handling capacity. Useful in modular ceiling application, where a ceiling tile can be replaced by a round diffuser of any neck size.

Mounting

Overlapped in false ceiling by means of hidden fixing systems or revetted onto a visible circular duct as well as directly on the plenum boxes.

Implementation

Constructed in high grade aluminium. External frame with flat frontal face and angled internal cores. Removable center core assembly can be removed easily for concealed fixing purpose and also for operating the damper by means of screws. For air supply butterfly damper can be revetted on the back side of the diffusers.

STANDARD FINISHES:

Available in Natural Aluminium, Anodized or Powder coated in standard RAL white colours.
