Round Voulme Control Dampers

ROUND VOLUME CONTROL DAMPERS

Application

Suitable to control the air volume in Air distribution ducts in Air conditioning, ventilating and Heating systems. Ensures duct systems air balancing.

Mounting

Mounted in the branches of air distribution Round ducts by means of bolts or by hidden fixing systems

Implementation

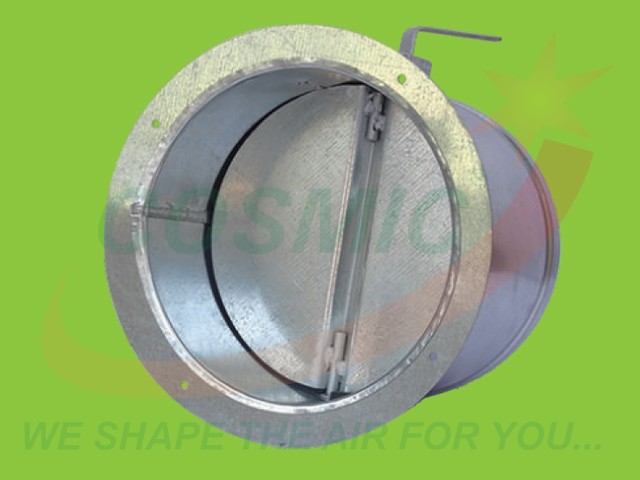

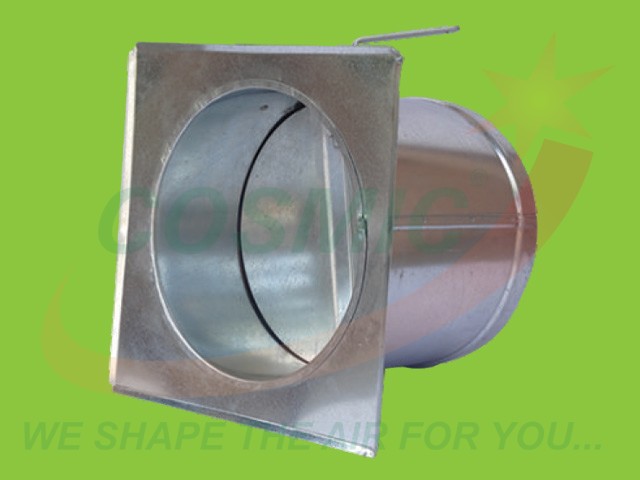

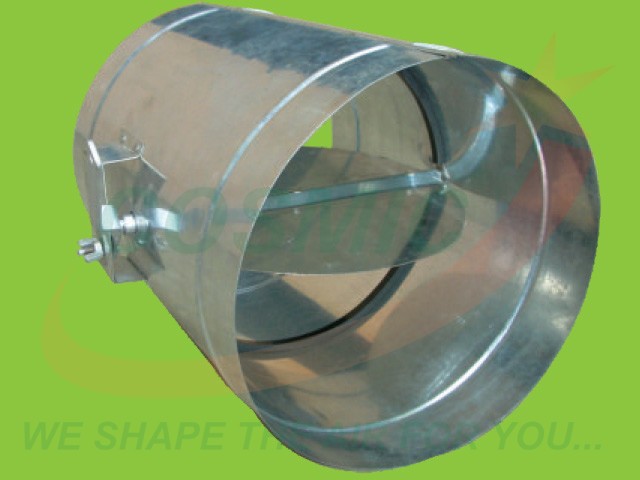

Frame and blade both are Galvanised steel sheet. Frame joints made by welding or by Ducting mulcut method. Two grooves are formed on both the ends for hidden fixing systems. Blade and frame connected by bushes and spindles. With the handle for manual operation Air volume adjusted by a lockable quadrant with status indicator, indicating open or closed position. For motorized operation extended spindle will be provided to fix the motor. Available with actuator or without actuators.

AVAILABLE SIZES

Available in minimum for 100x100 mm to maximum any standard or Non Standard sizes

STANDARD FINISH

Galvanised steel with Aluminium paints and available in high quality aluminium.
