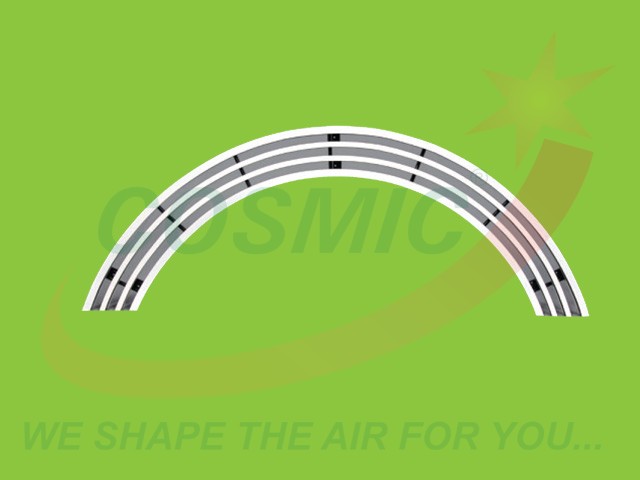

Slot Diffusers or Linear Diffusers

SLOT DIFFUSERS OR LINEAR DIFFUSERS

Application

Air supply or air return between 2.6mtrs and 4.0 mtrs high in Air-conditioning, Ventilating and Heating systems.

Mounting

Overlapped in false ceiling by means of hidden fixing systems. They all keep the formation of continuous line diffusers with active and inactive areas without breaking the uniformity of the slots.

Implementation

Frames and blades are high quality extruded aluminium profiles. Frame with flat frontal face and vanes in linear layout. Hit and miss dampers available for control the air throw. Available from 1 slot to 10 slots diffuser or more on request. All standard or non-standard sizes are available.

STANDARD FINISHES:

Natural Aluminium, Anodized or Powder coated in standard RAL white colours.
