Diffusers

Diffusers

Application

Air supply or air return between 2.6mtrs and 4.0mtrs high in Air-conditioning,Ventilating and Heating systems.

Mounting

Overlapped in false ceiling by means of hidden fixing systems or replacing a false ceiling tile.

Implementation

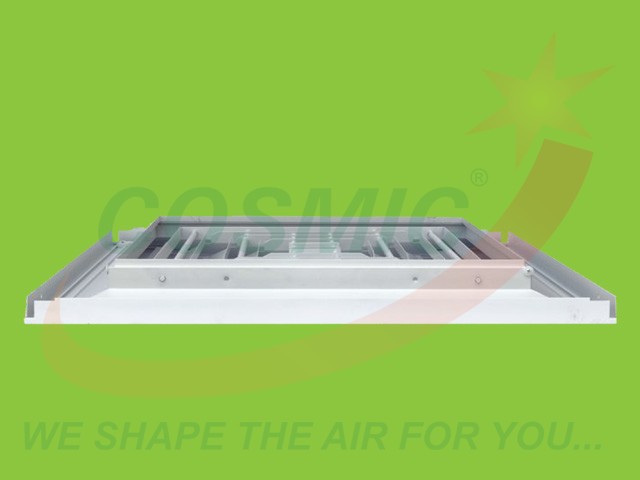

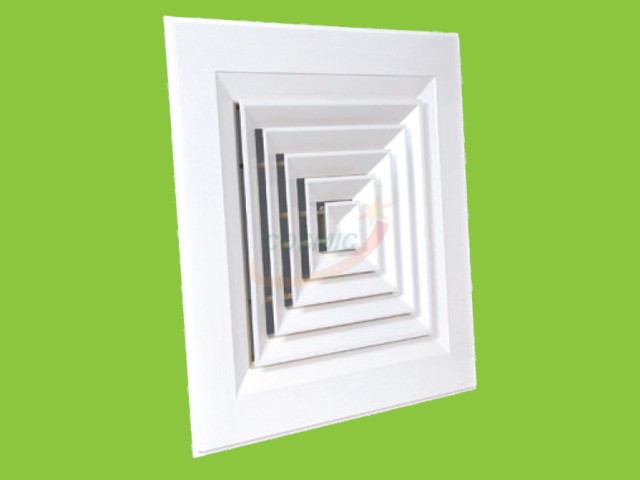

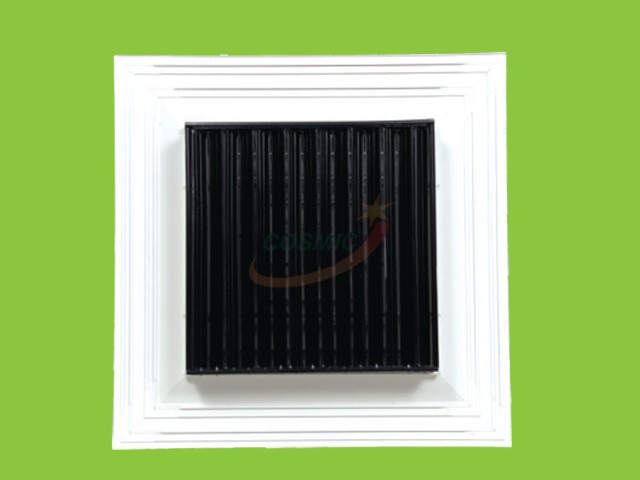

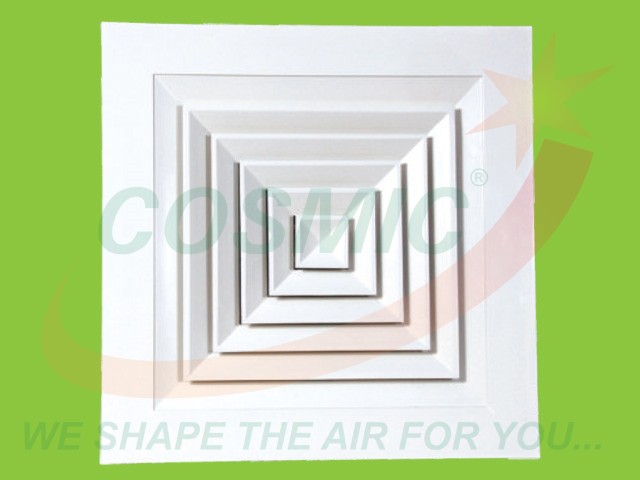

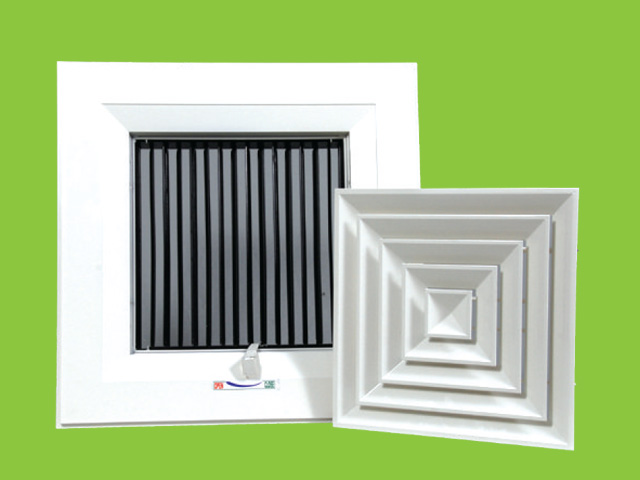

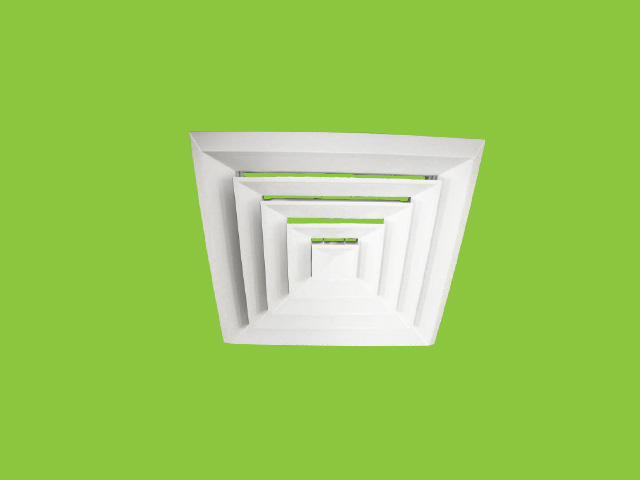

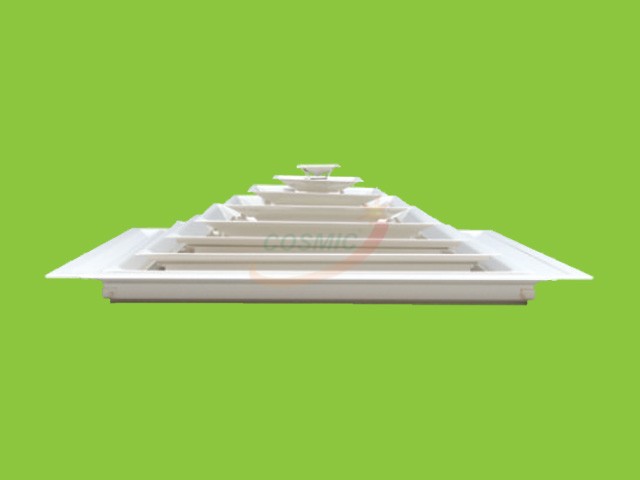

Extruded aluminium construction. Designed to discharge large volumes of air in all four directions with minimum pressure drop and low sound level. External frame with flat 33mm frontal face and inclined in internal core. centre cores assembly removable type to remove easily for cleaning purpose and for concealed fixing as well as for damper operation. Available in one way, two way, three way or fourway.

Sizes

Standard and non-standard square and rectangular sizes are available. Both flush type and step down models will be made as per the requirements.

STANDARD FINISHES:

Natural Aluminium, Anodized or Powder coated in standard RAL white colours.
